RECORD, MIX & PERFORM — 12 Tracks, 3 Effects, Touchscreen Control, USB Power

Product Introduction

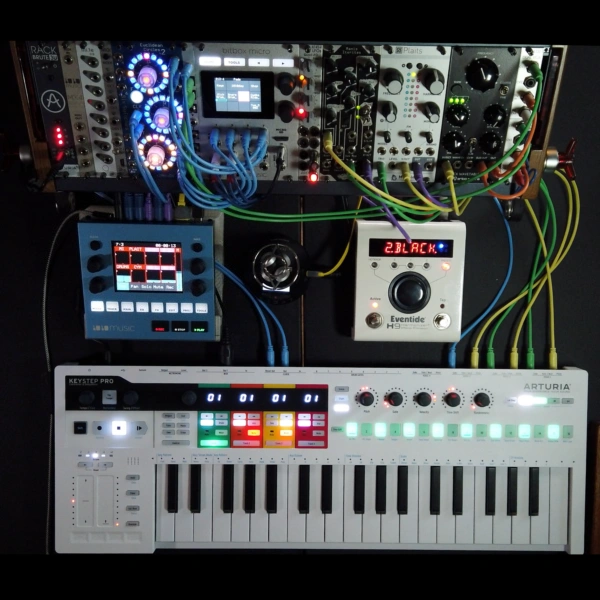

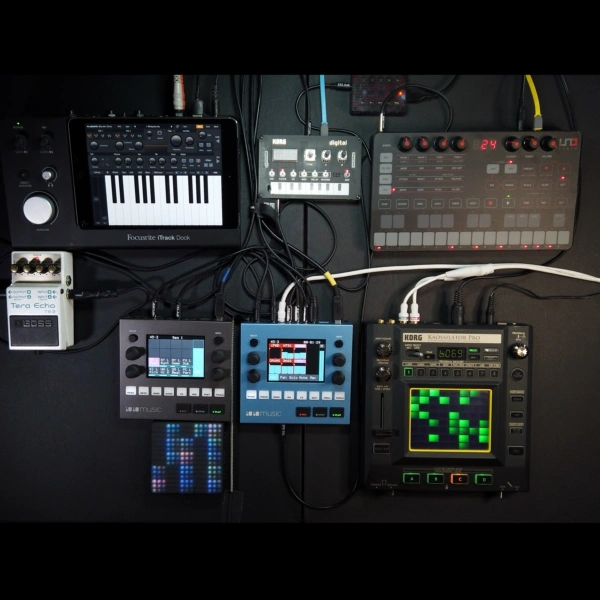

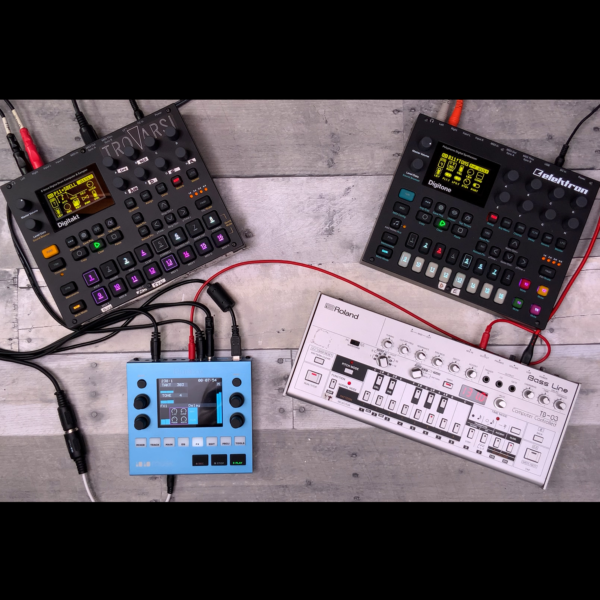

“Finally, a mixer that matches your portable electronic setup. This compact digital mixer integrates your entire tabletop rig — connect up to 6 stereo outputs from Eurorack modules, samplers, drum machines, and synthesizers, map them to 12 mono or 6 stereo tracks, and control everything from a responsive 3.5‑inch touchscreen with physical navigation knobs.

Each track gets independent volume, gain, 4‑band parametric EQ, pan, mute, and solo controls, so you can dial in every detail before it hits the recording. Three stereo outputs let you route tracks independently to the main mix, an assignable sub‑mixer, or a dedicated headphone output — perfect for sending separate feeds to front‑of‑house and your in‑ear monitors during live sets.

The built‑in high‑quality reverb and delay effects have independent sends, letting you add space and depth to your mix in real time. Record multi‑track stems or a stereo master directly to a microSD card as 48k/24‑bit WAV files, then overdub new layers while monitoring previously recorded tracks. USB‑powered and small enough to tuck into a crowded tabletop, this is the central hub your hardware has been waiting for.”

Product Features

🎚️ 12 Mono / 6 Stereo Tracks
“Six 3.5mm TRS stereo inputs can be mapped to 12 mono or 6 stereo tracks. Independent volume, gain, 4‑band parametric EQ, pan, mute, and solo per track. Accommodates Eurorack levels up to ±5V.”

🎛️ 3 Independent Stereo Outputs
“Route each track independently to the Main mix, an assignable output with its own sub‑mixer, or the headphone output. Full control over levels and mutes for each output — ideal for live performance monitoring.”

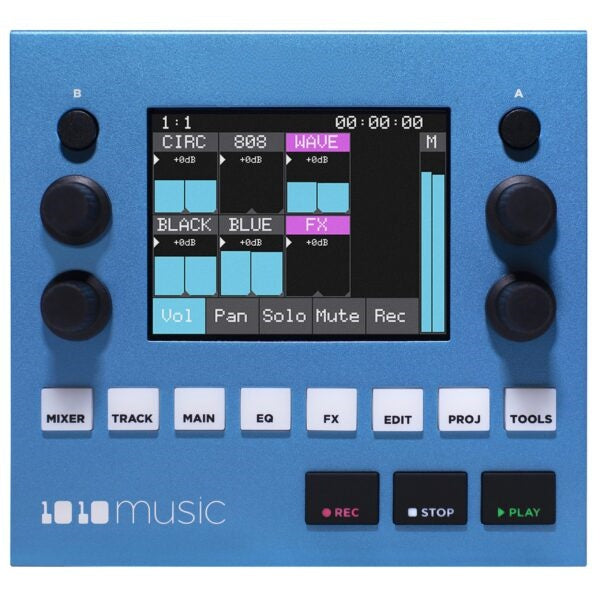

📱 3.5″ Touchscreen + Physical Knobs
“Intuitive touch interface for EQ, effects, and mixing with gesture support. Physical knobs, navigation buttons, and transport controls provide fast, hands‑on access to essential functions — no menu diving.”

💾 Record & Playback to microSD
“Capture hours of 48k/24‑bit WAV audio directly to a microSD card. Record multi‑track stems or the main stereo mix. Playback previously recorded tracks while recording new ones — perfect for overdubbing or live remixing.”

Product Specifications

• Track Count: 12 mono / 6 stereo tracks (configurable)

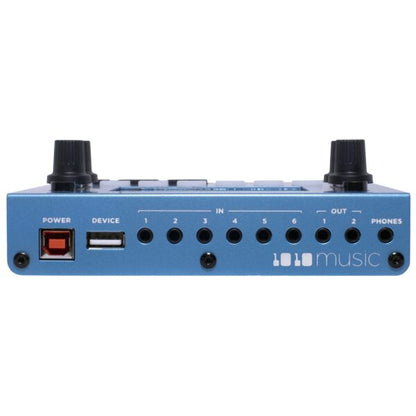

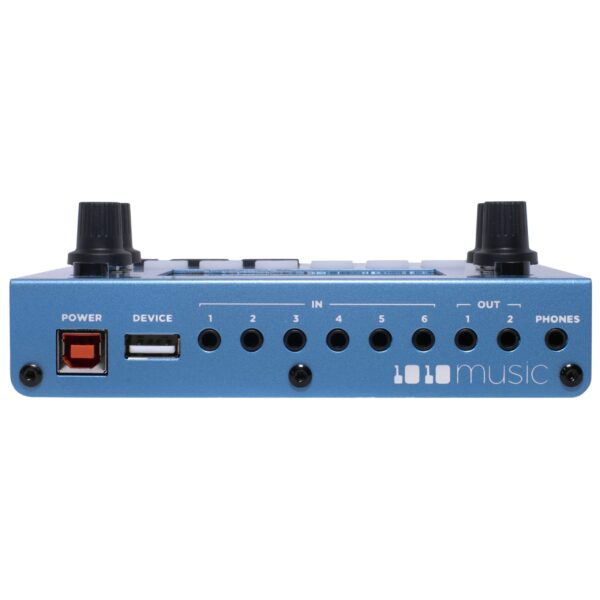

• Inputs: 6 × 3.5mm TRS stereo inputs (Eurorack level compatible, up to ±5V)

• Outputs: 3 × 3.5mm TRS stereo outputs (Main, Assignable, Headphone)

• Effects: High‑quality reverb, delay, and global compressor

• EQ: 4‑band parametric EQ per track (Low Cut/Shelf, Parametric, High Shelf/Cut)

• Recording: 48kHz / 24‑bit WAV to microSD (multi‑track or main mix)

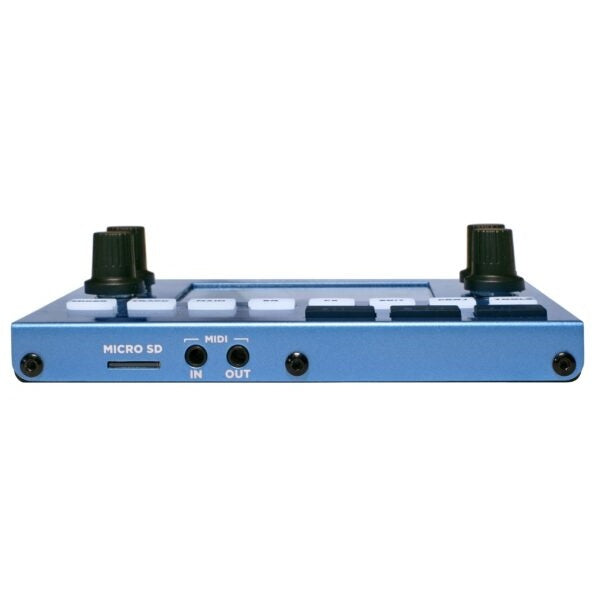

• MIDI: MIDI I/O via TRS + USB (sync to external clocks)

• Power: USB power (AC adapter included, or any USB power bank)

• Dimensions / Weight: 5.5″ × 5″ × 2″ (approx. 14 × 13 × 5 cm) / 1 lb (450g)

• Construction: Durable metal case

Your Portable Digital Mixer Includes:

• 1 × Digital Recording Mixer Unit (metal enclosure)
• 1 × microSD Card (pre‑loaded with firmware and demo projects)
• 1 × USB Power Cable
• 1 × AC Adapter with 3 International Plug Adapters
• 2 × MIDI Adapters (3.5mm TRS to 5‑pin DIN, Class B)
• 1 × USB B Splitter Cable
• 1 × Quick Start Guide

🎯Stop trying to wrangle a tangled mess of cables and mismatched mixers.
Grab the compact digital mixer that brings your entire electronic music rig together, records everything, and fits in your gig bag.
